When your line-pipe RFQ lists a spigot joint, you are not asking for a definition—you are deciding how your GRE/FRP string seals, deflects, and handles thrust. On fiberglass oilfield and industrial buried lines, that choice changes what you must design around: thrust blocks, hybrid restraint, or a locked joint. This page walks you through what you should lock into your inquiry package so your quote request matches how IFGS builds rubber-seal bell-and-spigot systems in Dongying.
What a spigot joint means on your GRE/FRP string

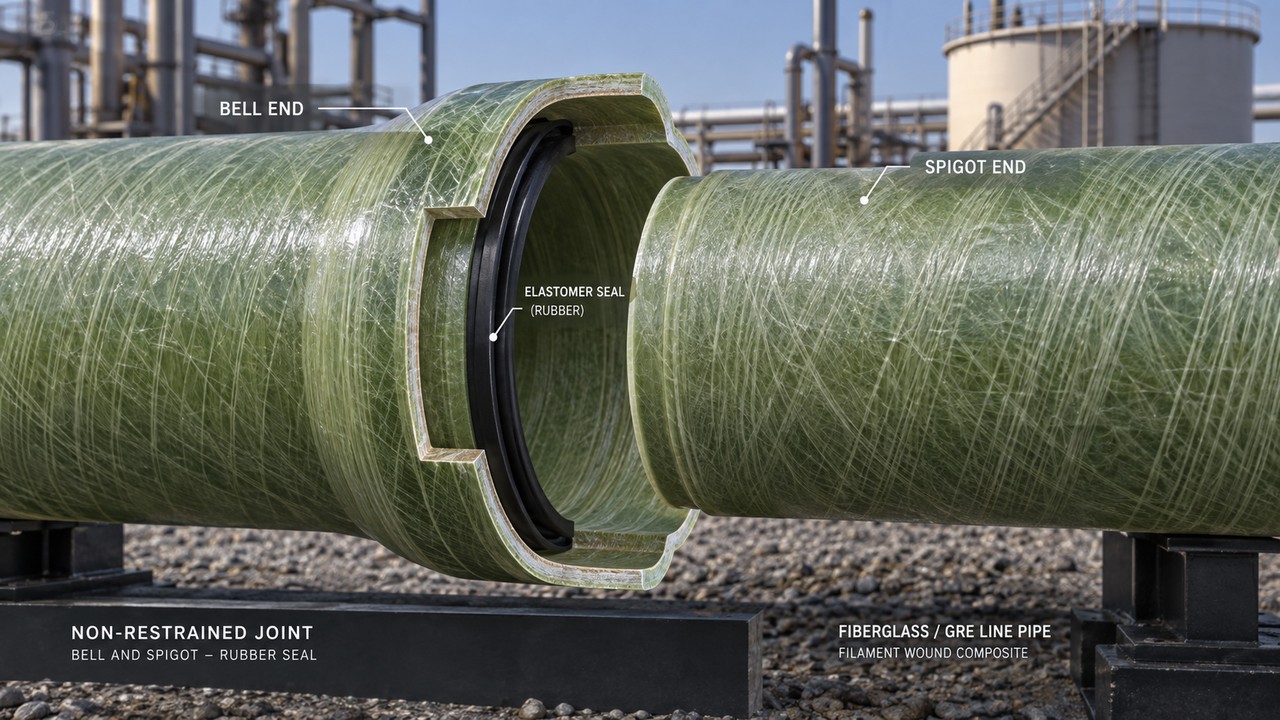

On IFGS fiberglass line pipe, a rubber-seal bell-and-spigot connection seats your spigot end into a bell with an elastomeric seal. You get a mechanical, non-welded joint that can take flexibility and deflection. For the standard (non-restrained) design, IFGS lists sizes up to 1,400 mm and pressure up to 50 bar, with typical use in buried service—and notes that hydropower work may use aboveground installation. That is the envelope you should reference when your scope sheet says “spigot joint” without naming the exact product family.
You should treat “spigot joint” on a search or bid form as a jointing-system decision, not a material essay. Your fluid (produced water, injection, chemicals), burial depth, and how you handle axial thrust decide whether you stay with a non-restrained rubber-seal bell and spigot or move to a locked, restrained sister joint.

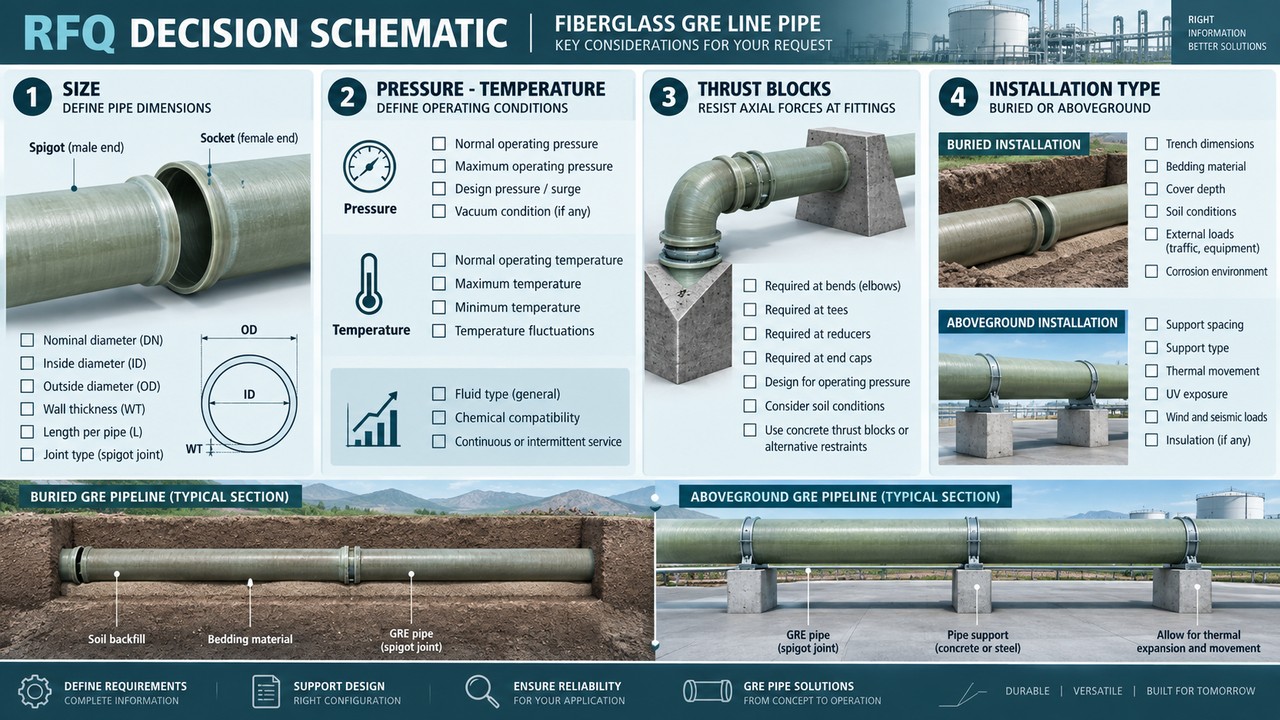

Non-restrained vs locked: the decision table for your RFQ
Use this table when you shortlist the joint type before you ask for a datasheet or quotation:
| Decision factor on your project | Non-restrained rubber-seal bell & spigot | Locked (restrained) rubber-seal bell & spigot |
|---|---|---|
| Catalog size / pressure (IFGS) | Up to 1,400 mm; up to 50 bar | Up to 1,400 mm; up to 50 bar |
| Restraint | Non-restrained; flexibility and deflection | Restrained; keeps flexibility |
| Thrust management you must plan | Requires thrust blocks or hybrid systems | Does not require thrust blocks |
| Typical installation context | Buried; hydropower may be aboveground | Typically buried |
| Best when your layout… | Can accept thrust blocks / hybrid restraint | Needs restraint without thrust-block civil work |
If your civil package already budgets thrust blocks or hybrid systems, the non-restrained path may fit your design. If your right-of-way or schedule makes thrust blocks costly or impractical, you should evaluate the locked joint before you freeze the RFQ language.
For your non-restrained option, open Rubber Seal Bell And Spigot Joint.
When your design needs restraint without thrust blocks, review the sister product Rubber Seal Bell And Spigot Locked Joint.
RFQ checklist: what you should send so the quote matches your line
Before you request a quotation, put these items in your inquiry so IFGS can return verified technical data instead of a vague placeholder reply:
- Joint type you intend — non-restrained rubber-seal bell & spigot, or locked/restrained; say if you still need help choosing.
- Diameter and pressure class you need — stay inside the published envelope (up to 1,400 mm / up to 50 bar) or flag if your duty is outside it and you need engineering review.
- Service and fluid — oilfield / industrial; produced water, injection, chemical, or other corrosive duty where GRE/FRP replaces steel.
- Installation — buried vs aboveground; note hydropower or any aboveground segments explicitly.
- Thrust plan — thrust blocks, hybrid systems, or “prefer no thrust blocks” (points you toward locked).
- Standards you will audit against — for example, IFGS low-pressure line-pipe pages reference API Spec 15LR; ask for the joint datasheet that aligns with your pipe standard set.
- Quantity, length schedule, fittings, and delivery window — enough for a real manufacturing quote from Dongying.
IFGS states that verified technical data is available on request—so your RFQ should ask for the product datasheet by name, not only a unit price.
Where this joint fits on your oilfield or industrial buried line
IFGS manufactures GRE and FRP pipe systems in Dongying for oilfield and geothermal service, and positions fiberglass where steel corrodes—produced water, injection, and chemical lines. On those strings, you typically use a rubber-seal bell-and-spigot joint when you want buried-line flexibility with a sealed push-fit style connection rather than a threaded or laminated joint family.
You should not assume every GRE/FRP connection on the catalog is interchangeable. Threaded couplings, flanged joints, double-bell couplers, and adhesive or lamination joints solve different layout and pressure problems. For a classic “spigot joint” inquiry aimed at buried line pipe with rubber seal performance, you stay inside the rubber-seal bell-and-spigot family and decide restrained vs non-restrained with the table above.
Spec traps that slow your quote
Watch for these gaps in your package—they are the usual reasons a spigot-joint RFQ comes back with clarifying questions instead of numbers:
- You wrote “spigot joint” but did not say restrained or non-restrained.
- You omitted whether thrust blocks are allowed on your route.
- You listed pressure or diameter without checking the 1,400 mm / 50 bar catalog ceiling.
- You mixed aboveground hydropower segments with buried oilfield segments without calling them out.
- You asked for price only and skipped the datasheet request IFGS invites on the product pages.
Clean those five items and your inquiry is ready for a serious response.
FAQ
What does “spigot joint” mean for your fiberglass line-pipe RFQ?
For your GRE/FRP inquiry, a spigot joint usually means a rubber-seal bell-and-spigot connection: your spigot end enters a bell sealed with elastomer. On IFGS pages, that family is listed up to 1,400 mm and up to 50 bar, mainly for buried service. You should name non-restrained vs locked in the RFQ so thrust design and civil scope are priced correctly from the start.
Do you need thrust blocks with a rubber-seal bell-and-spigot joint?
If you select the non-restrained rubber-seal bell-and-spigot option, IFGS states that the joint requires thrust blocks or hybrid systems. If your project cannot carry that civil cost, you should evaluate the locked sister joint, which is restrained and does not require thrust blocks, while still offering flexibility for buried layouts.
Is the locked spigot joint the same size and pressure range for your scope?
Yes on the published catalog lines: both the non-restrained and locked rubber-seal bell-and-spigot products list up to 1,400 mm and pressure up to 50 bar. Your real decision is restraint and thrust-block policy, not a different diameter or pressure headline. Ask for verified datasheets if your duty sits near those limits.
Can you use this joint aboveground on your project?
IFGS describes typical use as buried for both products. For the non-restrained joint, the page also notes that hydropower applications may utilize aboveground installation. If your oilfield or industrial line has aboveground runs, you should call that out in the RFQ so the quote and datasheet review match your actual routing.
What should you attach when you ask IFGS for a quotation?
You should attach diameter, pressure class, fluid/service, buried vs aboveground, restrained vs non-restrained preference, thrust-block constraints, standards you will audit, and a length/quantity schedule. IFGS invites you to request the product datasheet and verified technical data—include that ask so you receive engineering-ready documents, not only a price line.
How does this joint relate to the GRE/FRP pipe IFGS builds in Dongying?
IFGS manufactures GRE and FRP pipe, tanks, and fittings in Dongying and supplies oilfield and geothermal projects where corrosion drives you away from steel. The rubber-seal bell-and-spigot family is one jointing option on that catalog. Your RFQ should pair the joint type with the line-pipe duty so seal, restraint, and pipe wall are quoted as one system.
When should you pick locked instead of standard spigot for your buried line?
Pick the locked joint when your buried route needs a restrained joint with flexibility and you do not want thrust blocks. Stay with the non-restrained joint when your design already includes thrust blocks or hybrid systems and you want the deflection behavior of the standard rubber-seal bell and spigot. Put that preference in writing before you request numbers.
When your checklist is complete, request the product datasheet from the money page linked above, confirm whether you need the locked sister, and send IFGS your diameter, pressure, service fluid, burial plan, and thrust-block constraints so your fiberglass line-pipe quote rests on verified technical data for your inquiry—not guesswork.
